1. Weather Satellites

Weather satellites are a type of satellite that monitors the weather on earth and sends information to scientists and researchers continuously. The idea of observing weather on earth from space was first introduced in the 1940s. The first weather satellite, named the Vanguard 2, was launched in 1959. It lacked in axis of rotation and poor orbit restricted its ability to collect useful data. The first weather satellite that was considered successful was the TIROS-1 that was launched in 1960 by NASA and lasted 78 days. From there satellite technology improved to include polar orbiting, or geostationary.

Interesting Weather Satellites Facts:

Weather satellites can record a variety of weather and other phenomena including clouds, cloud systems, fire, pollution effects, dust storms, sand storms, snow, ice caps, ocean currents, volcanic ash in the air, smoke and much more.

Some countries that fly weather satellites include the United States, Japan, China, Russia, and Europe.

The use of weather satellites has improved the ability to forecast weather significantly.

The visible light images of weather satellites are easily interpreted. Even people with no training can identify clouds, fronts, tropical storms, dust, smog, forests and mountains.

The thermal or infrared images of weather satellites require a trained professional to interpret the images and what they represent.

Geostationary orbiting is one type of orbit for weather satellites. With this type, the satellite orbits the earth at 22,300 miles above the equator where it hovers.

Polar orbiting is the second type of orbit for weather satellites. With this type the satellite sits at an altitude of 530 miles and circles the earth from north to south. A polar orbit satellite sees every location on earth twice each day.

The United States Department of Defense's DMSP (Defense Meteorological Satellite Program) has a satellite that can see objects such as tankers from space. This is the only weather satellite capable of seeing at night.

The DMSP satellite has taken amazing night photos of fires, lightning, cities, and the Northern Lights.

The DMSP can detect fires and energy use as well as information that can affect fire spreading such as wind and smoldering.

Weather satellites can be used to measure radiation on the earth's surface so that scientists know how much heat and energy the earth is releasing.

Weather satellites can provide information to fishermen regarding the temperature of the ocean which in turn can signal where the fish may be, as well as whether it is safe (weather wise) to head out to sea.

Weather satellites measure the amount of snow and ice, as well as ice field movement. They can also measure the rate at which ice is melting around the world, which will have a great impact on water levels in the future.

Weather satellites can measure crops conditions, drought, and areas where deforestation is occurring.

Weather satellites also collect data from remote locations such as ocean buoys, earthquake measuring stations, weather stations, and can also monitor river conditions and rises in the water that could be dangerous for people in areas where flash flooding is a risk.

2. Global Climate Observing System

The Global Climate Observing System (GCOS) is a co-sponsored programme which regularly assesses the status of global climate observations of the atmosphere, land and ocean and produces guidance for its improvement.

It is co-sponsored by the

   World Meteorological Organization (WMO),

 Intergovernmental Oceanographic Commission of UNESCO (IOC-UNESCO),

   United Nations Environment Programme (UN Environment), and

   International Science Council (ISC).

GCOS expert panels maintain definitions of Essential Climate Variables (ECVs). They identify gaps by comparing the existing climate observation system with these ECVs. ECVs are the observations required to systematically observe Earth`s changing climate. The expert panels regularly develop plans on how to sustain, coordinate and improve physical, chemical and biological observations.

The observations supported by GCOS contribute to solving challenges in climate research and also underpin climate services and adaptation measures.

3. Meteorological Satellite Reception System

History

Meteorological satellites carry onboard sensors to capture images of the earth from the space. There are two types of meteorological satellites characterized by their orbits. They are geostationary satellites and polar-orbiting satellites (Figure 1).

Geostationary satellites are stationary relative to the earth and as such they capture images of the same geographical area on the earth 24 hours a day. Located some 35,800 kilometres above the equator, they take pictures covering almost half the globe.

Polar-orbiting satellites are low-flying satellites circling the earth in a nearly north-south orbit, at several hundred kilometers above the earth. Most of them pass over the same place a couple of times a day. Since they travel at a distance closer to the earth, they are only capable of taking images of a limited area each time. However, the images are of higher resolution than those from the geostationary satellites. In comparison, geostationary satellites offer more satellite images of the same area per day.

Reception of Meteorological Satellites

Take Hong Kong for example, soon after the launch of the Television and Infra-red Observation Satellite (TIROS 8) by the U.S.A. in 1963, the Hong Kong Observatory started using locally designed equipment to receive satellite signals from the Automatic Picture Transmission System (APT) on-board the satellite. The early pictures were displayed on a modified domestic television set.

This equipment was used to receive transmissions from the Environmental Survey Satellite (ESSA) and the National Oceanic and Atmospheric Administration (NOAA) series of polar-orbiting satellites until a photographic recorder was purchased in 1968.

In 1977, Japan Meteorological Agency (JMA) launched the first of a series of Geostationary Meteorological Satellite (GMS) into an orbit 35,800 km over the equator at longitude 140°E. Images in the visible (VIS) and infra-red (IR) channels were available every three hours in analogue facsimile form. In 1979, the Observatory purchased a reception system to receive the high-resolution pictures (HR-FAX) from the GMS. The GMS was subsequently replaced by its successors GMS-2 in 1981, GMS-3 in 1984, GMS-4 in 1989 and GMS-5 in 1995. The transmission mode of the satellite was also changed from analogue facsimile form to stretched-VISSR (Visible Infra-red Spin Scan Radiometer) digital form, and the frequency of transmission increased to provide satellite pictures every hour. To cope with these changes, the Observatory installed a computer-based reception system in 1988. A more advanced UNIX-based reception system was installed in 1996 to receive and analyze additional satellite images of an additional IR channel and a new water vapour (WV) channel from GMS-5.

In late 2001, the Hong Kong Observatory installed a satellite reception system to receive satellite images from the Fengyun-1 series of polar-orbiting meteorological satellites operated by the China Meteorological Administration (CMA) and from the series of polar-orbiting meteorological satellites operated by the U.S. National Oceanic and Atmospheric Administration (NOAA).

In mid-2003, the operation of GMS-5 was taken over by the Geostationary Operational Environmental Satellite-9 (GOES-9) of NOAA. The Observatory utilized the satellite reception system for GMS-5 to receive satellite images from GOES-9.

In 2004, the Observatory installed another satellite reception system to receive broadcast from MODIS, an acronym for MODerate Resolution Imaging Spectroradiometer, which is a sensor onboard the Earth Observing Systems (EOS) satellites, namely Terra and Aqua, operated by the U.S. National Aeronautics and Space Administration (NASA). MODIS has 36 observational channels, covering a wide frequency spectrum ranging from visible to infra-red radiation, making it valuable data source for meteorology, oceanography as well as environmental monitoring. The high-resolution images from MODIS are useful for monitoring fine features or phenomena such as hill fire and haze.

In 2005, the first operational geostationary meteorological satellite of CMA, namely Fengyun-2C (FY-2C), was put into operation. Located over the equator at the longitude of 105°E, FY-2C provides imagery of five channels (VIS, IR1, IR2, WV and IR4) covering most parts of Asia, Australia, Indian Ocean and the Western Pacific. The resolution of the VIS imagery is 1.25 km while that of IR and WV imagery is 5 km. The imagery for the Northern Hemisphere is updated as frequent as 30 minutes during rainy and typhoon seasons.

In the same year, the first of the next generation geostationary meteorological satellites of JMA, namely MTSAT-1R, was launched to replace GOES-9. Available at 30 minute intervals, images of MTSAT-1R cover almost the same area as GOES-9. MTSAT-1R satellite provides a new infrared channel (IR4) in addition to the four channels (VIS, IR1, IR2 and WV). The resolution of the VIS imagery is 1 km whereas the IR and WV imagery are at 4-km resolution.

Application of Satellite Data

The Observatory receives direct broadcasts from the following satellites round-the-clock to support its weather forecasting and warning services:

   FY-1D and FY-2C satellites of CMA.

   MTSAT-1R of JMA.

   Series of polar-orbiting satellites of NOAA.

   EOS-series of satellites of NASA.

Meteorological satellite data serve a number of purposes:

   Satellite pictures provide a global view of the distribution of cloud cover and weather systems and form an essential source of information particularly over the oceans and other areas where weather observations are sparse.

   Clouds of rainstorm develop and ascend to great height and their cloud top temperatures are relatively low. Infra-red satellite images, which depict the cloud top temperatures, are useful in monitoring the development of rainstorms.

  The characteristic cloud features of tropical cyclones are easily recognizable on a satellite image and can be of great assistance in tracking their movement and estimating their intensity (Figure 2).

  Infra-red satellite images depict the variation in sea surface temperatures, provided the area is not obscured by clouds. The information is useful for forecasting sea fog and monitoring the development of tropical cyclones.

   Other than displaying cloud images, some satellite images provide useful information for environmental monitoring such as distribution of haze, location of hill fire, eruption of volcanic ash and location of sandstorm.

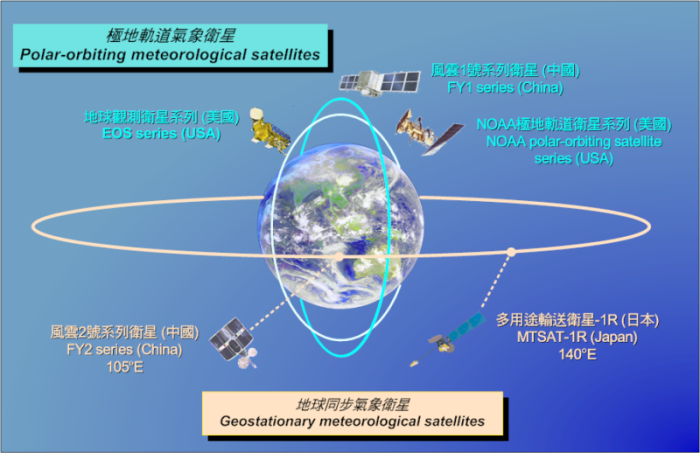

Figure 1: Geostationary meteorological satellites and polar-orbiting meteorological satellites.
